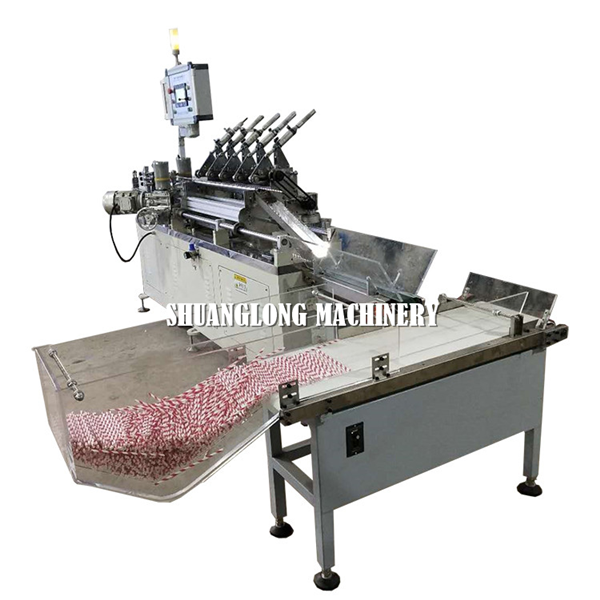

Automatic Drinking Paper Straw Making Machine

Brand Name : SL

Model Number : SLXG

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Price negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5SETS/MONTH

Delivery Time : 30 days after got deposit

Packaging Details : Export Standard Packing

Product type : Paper straw machine

Power : 2.2KW

Reel diameter : 5-30mm

Roll thickness : 0.3-2.5mm

Winding head : 2 head

Warranty : 1 Year

Contact Now

Automatic Drinking Paper Straw Making Machine

Product Application

Suitable for small diameter (5-12mm) paper tube production, such as paper straw, pen tube.

Quick Details

1. It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

2. Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.

3. Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.

Technical parameter		Technical parameter
Paper layer	2-5 layers	Electric machinery	Shanghai
Inner diameter	4-12mm	Interface	Schneider
Thickness	0.3-1mm	Inverter	4kw schneider
Speed	0-55m/min	Actuating element	schneider
Cutting length	120-1050mm	Signal elecment	OMCH
Way of gluing	Single/double side	Pneumatic	Air TAC
Fixed length	Encoder	Electrical components	schneider
Operator	1-2 person	Servomotor	1kw schneider
Speed control	Pole free speed	Moving screw rod	ABBA Taiwan
Power supply	380v/ 3phase/ 50hz	Moving block	ABBA Taiwan
Blade	6 driven blades	Main part dimension	5600x1600x1750mm
Glue method	Three layer spray type	Overall Dimension	8000x6000x1800mm
Weight	1200kgs
